Voltage: 400 V | Pole: 24 | Duty Cycle: S5 40% | Brake Voltage: 110 VDC | Max. Static Load: 3500 Kg
| Model No. | Max. Duty Load (Kg.) | Max. Passenger Capacity | Max. Speed (m/s) | Sheave Dia (mm) | Ratio of Roping | No. of Ropes | Rope Dia. (mm) | Current (A) | Power (kw) | RPM | Torque (NM) | Frequency (Hz) | IP Protection | Start / Hr. | Machine Weight (kg) Appx |
| RTG 24P 1210 A-240 | 680 | 10 | 0.50 | 240 | 2.1 | 6 | 8 | 9.8 | 2.4 | 80 | 290 | 16 | IP41 | 180 | 210 |
| RTG 24P 1210 B-240 | 680 | 10 | 0.75 | 240 | 2.1 | 6 | 8 | 10.0 | 3.6 | 120 | 290 | 24.0 | IP41 | 180 | 210 |
| RTG 24P 1210 C-240 | 680 | 10 | 1.00 | 240 | 2.1 | 6 | 8 | 10.1 | 5 | 160 | 290 | 32 | IP41 | 180 | 210 |
| RTG 24P 1210 D-240 | 680 | 10 | 1.25 | 240 | 2.1 | 6 | 8 | 16.5 | 6.2 | 199 | 290 | 39.8 | IP41 | 180 | 210 |
| RTG 24P 1210 E-240 | 680 | 10 | 1.50 | 240 | 2.1 | 6 | 8 | 16.7 | 7.5 | 239 | 290 | 47.8 | IP41 | 180 | 210 |
| RTG 24P 1210 F-240 | 680 | 10 | 1.75 | 240 | 2.1 | 6 | 8 | 17 | 8.6 | 279 | 290 | 55.8 | IP41 | 180 | 210 |
| RTG 24P 1210 A-320 | 680 | 10 | 0.50 | 320 | 2.1 | 6 | 8 | 11 | 2.1 | 60 | 340 | 12 | IP41 | 180 | 210 |
| RTG 24P 1210 B-320 | 680 | 10 | 0.75 | 320 | 2.1 | 6 | 8 | 11.2 | 3.2 | 90 | 340 | 18 | IP41 | 180 | 210 |
| RTG 24P 1210 C-320 | 680 | 10 | 1.00 | 320 | 2.1 | 6 | 8 | 12 | 4.2 | 120 | 340 | 24 | IP41 | 180 | 210 |
| RTG 24P 1210 D-320 | 680 | 10 | 1.25 | 320 | 2.1 | 6 | 8 | 14 | 5.3 | 149 | 340 | 29.8 | IP41 | 180 | 210 |
| RTG 24P 1210 E-320 | 680 | 10 | 1.50 | 320 | 2.1 | 6 | 8 | 22 | 6.6 | 179 | 340 | 35.8 | IP41 | 180 | 210 |
| RTG 24P 1210 F-320 | 680 | 10 | 1.75 | 320 | 2.1 | 6 | 8 | 22 | 7.6 | 209 | 340 | 41.8 | IP41 | 180 | 210 |
| RTG 24P 1210 G-320 | 680 | 10 | 2.0 | 320 | 2.1 | 6 | 8 | 22.5 | 8.8 | 239 | 340 | 47.8 | IP41 | 180 | 210 |
| RTG 24P 1210 H-320 | 680 | 10 | 2.25 | 320 | 2.1 | 6 | 8 | 22.6 | 10.9 | 269 | 340 | 53.8 | IP41 | 180 | 210 |
| RTG 24P 1210 I-320 | 680 | 10 | 2.50 | 320 | 2.1 | 6 | 8 | 22.8 | 11 | 299 | 340 | 59.8 | IP41 | 180 | 210 |
| RTG 24P 1210 A-400 | 680 | 10 | 0.50 | 400 | 2.1 | 6 | 8 | 11 | 1.7 | 48 | 340 | 9.6 | IP41 | 180 | 210 |
| RTG 24P 1210 B-400 | 680 | 10 | 0.75 | 400 | 2.1 | 6 | 8 | 11 | 2.6 | 72 | 340 | 14.4 | IP41 | 180 | 210 |
| RTG 24P 1210 C-400 | 680 | 10 | 1.00 | 400 | 2.1 | 6 | 8 | 11 | 3.4 | 96 | 340 | 19.2 | IP41 | 180 | 210 |
| RTG 24P 1210 D-400 | 680 | 10 | 1.25 | 400 | 2.1 | 6 | 8 | 12 | 4.2 | 120 | 340 | 24 | IP41 | 180 | 210 |
| RTG 24P 1210 E-400 | 680 | 10 | 1.50 | 400 | 2.1 | 6 | 8 | 12.5 | 5 | 143 | 340 | 28.6 | IP41 | 180 | 210 |
| RTG 24P 1210 F-400 | 680 | 10 | 1.75 | 400 | 2.1 | 6 | 8 | 14.2 | 5.9 | 167 | 340 | 33.4 | IP41 | 180 | 210 |
| RTG 24P 1210 G-400 | 680 | 10 | 2.00 | 400 | 2.1 | 6 | 8 | 22 | 7 | 191 | 340 | 38.2 | IP41 | 180 | 210 |
| RTG 24P 1210 H-400 | 680 | 10 | 2.25 | 400 | 2.1 | 6 | 8 | 22.2 | 7.8 | 215 | 340 | 43 | IP41 | 180 | 210 |
| RTG 24P 1210 I-400 | 680 | 10 | 2.5 | 400 | 2.1 | 6 | 8 | 22.5 | 8.8 | 239 | 340 | 47.8 | IP41 | 180 | 210 |

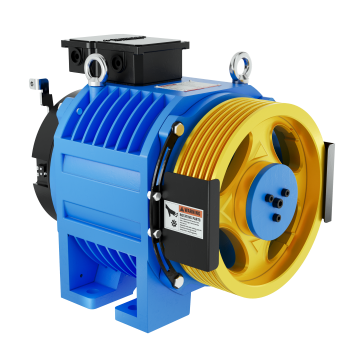

A Gearless Driving Machine is a direct-drive system in which there is no reduction gear attached between the motor and the drive (or hoisting) sheave. That is, the drive sheave is connected directly to the motor and brake. In the Modern Era, Gearless designs are being used in the World's High-rise and Modern structures.
We are the Fastest Growing Company in Gearless Elevator Machines.
Tectronics was born from the collaboration of two companies working in vertical consumer technology. One is Captain Tractors, pioneer of the first Mini Tractor of India, also considered to be one of the leading manufacturing companies of mini tractors with a successful market in the tractor business over the last 23 years.
Adopting best techniques, we have assortment of solutions to the users. Bundle of Qualities like compact size, gearless & energy saving proves to be unique in various views
