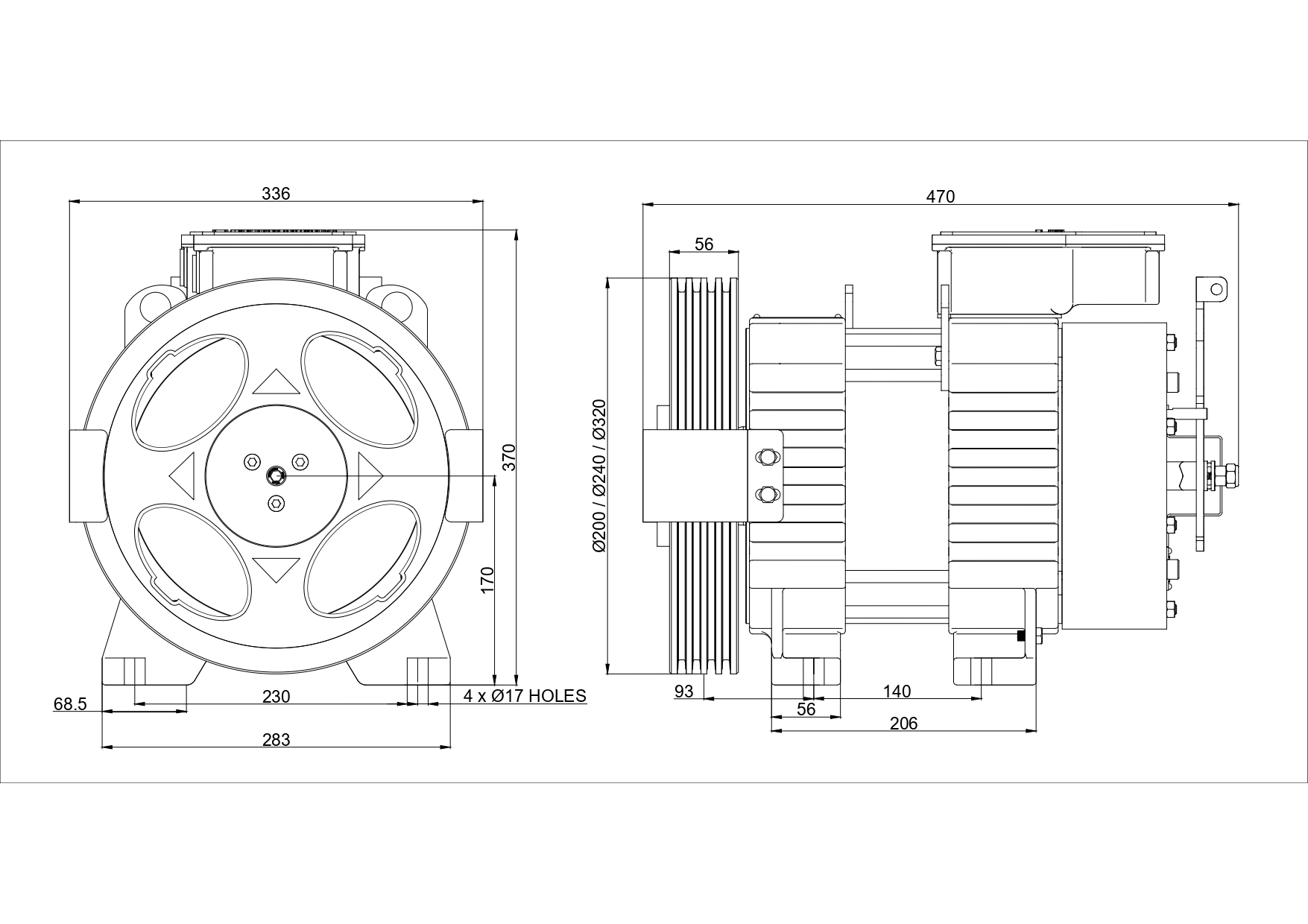

RTG 32P 0606 Series

aboutus

Technical Specifications:

Voltage: 400 V | Pole: 32 | Duty Cycle: S3 40% | Brake Voltage: 110 VDC | Max. Static Load: 2500 Kg

Model No. Max. Duty Load (Kg.) Max. Passenger Capacity Max. Speed (m/s) Sheave Dia (mm) Ratio of Roping No. of Ropes Rope Dia. (mm) Current (A) Power (kw) RPM Torque (NM) Frequency (Hz) IP Protection Start / Hr. Machine Weight (kg) Appx
RTG 32 P 0606 A-320 408 6 0.50 320 2:1 4 8 9.2 1.25 60 190 16.0 IP41 180 155
RTG 32 P 0606 B-320 408 6 0.75 320 2:1 4 8 9.2 1.9 90 190 24.0 IP41 180 155
RTG 32 P 0606 C-320 408 6 1.00 320 2:1 4 8 9.5 2.5 120 190 32.0 IP41 180 155
RTG 32 P 0606 D-320 408 6 1.25 320 2:1 4 8 10.4 3.2 150 190 40.0 IP41 180 155

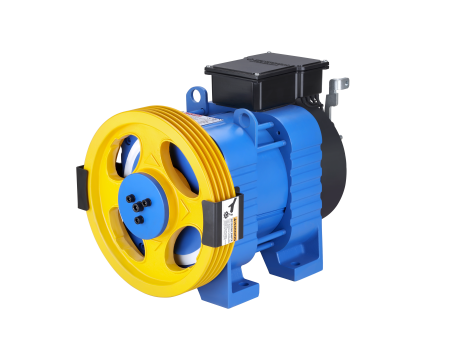

Gearless Elevator Machines

A Gearless Driving Machine is a direct-drive system in which there is no reduction gear attached between the motor and the drive (or hoisting) sheave. That is, the drive sheave is connected directly to the motor and brake. In the Modern Era, Gearless designs are being used in the World's High-rise and Modern structures.

ICO Echo

GearlessTechnology

No Machine Room Required

Energy Saving

Noise-free Operation

Compact in Size
